Bleico¶

Bluetooth Low Energy System Tray Utility¶

Bleico is a system tray application/tool to scan, connect, explore and debug Bluetooth low energy devices which are compliant with Bluetooth SIG GATT Characteristics.

Lincense: GPL-3.0
Documentation: https://bleico.readthedocs.io.

It is based on bleak, bleak-sigspec and PyQt5

Features¶

Bluetooth Low Energy Scanner
System Tray Menu with:
- Icon according to Appearance characteristic (if present)
- Device Name
- Device UUID
- Services and Characteristics menu tree
- Characteristic Metadata view
- Device information (if present)
- Readable and writeable Characteristics organised in sections by services
- Read periodically from Characteristics
- Write to Characteristics (from menu or dialog box)
- Enable desktop notifications on notifiable Characteristics
- Configurable tool tip
- Last update, Connection status and RSSI
- Desktop Notification on Connection status changes (can be disabled).
- Automatic Reconnection on disconnect, in 30 seconds cycles until reconnected.

Command Line Tool vs Standalone Application¶

Bleico comes in two versions, as a command line tool e.g:

$ bleico -h
usage: bleico [Mode] [options]

Bluetooth Low Energy System Tray Utility

positional arguments:
  Mode          Mode:
                - config
                - run

optional arguments:
  -h, --help    show this help message and exit
  -v            show program's version number and exit
  -t T          device target uuid
  -s            show scanner with available devices
  -r R          read timeout in seconds, default: 1
  -dflev DFLEV  debug file mode level, options [debug, info, warning, error, critical]
  -dslev DSLEV  debug sys out mode level, options [debug, info, warning, error, critical]

Or as a standalone application

The only difference is that with the command line tool, every event is logged to the console so any error can be easily debbuged. .e.g:

$ bleico run
************************************************************

$$$$$$$\  $$\       $$$$$$$$\ $$$$$$\  $$$$$$\   $$$$$$\
$$  __$$\ $$ |      $$  _____|\_$$  _|$$  __$$\ $$  __$$\
$$ |  $$ |$$ |      $$ |        $$ |  $$ /  \__|$$ /  $$ |
$$$$$$$\ |$$ |      $$$$$\      $$ |  $$ |      $$ |  $$ |
$$  __$$\ $$ |      $$  __|     $$ |  $$ |      $$ |  $$ |
$$ |  $$ |$$ |      $$ |        $$ |  $$ |  $$\ $$ |  $$ |
$$$$$$$  |$$$$$$$$\ $$$$$$$$\ $$$$$$\ \$$$$$$  | $$$$$$  |
\_______/ \________|\________|\______| \______/  \______/

************************************************************
2020-09-10 22:27:20,153 [bleico] [MainThread] [INFO] Running bleico 0.0.1
2020-09-10 22:27:23,544 [bleico] [MainThread] [INFO] Connected to: 9998175F-9A91-4CA2-B5EA-482AFC3453B9
2020-09-10 22:27:24,540 [bleico] [MainThread] [INFO] Device esp32-batt-temp found
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] Services:
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO]  (S) Device Information
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO]  (C)  - Appearance
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO]  (C)  - Manufacturer Name String
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO]  (C)  - Model Number String
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO]  (C)  - Serial Number String
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO]  (C)  - Firmware Revision String
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO]  (C)  - Hardware Revision String
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO]  (C)  - Software Revision String
2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO]  (S) Battery Service
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO]  (C)  - Battery Level
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO]  (C)  - Battery Power State
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO]  (S) Environmental Sensing
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO]  (C)  - Temperature
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO]  (C)  - Temperature Range
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] Device: esp32-batt-temp, UUID: 9998175F-9A91-4CA2-B5EA-482AFC3453B9
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] Device Information:
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO]     - Appearance: Generic Thermometer
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO]     - Manufacturer Name : Espressif Incorporated
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO]     - Model Number : ESP32 module with ESP32
2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO]     - Serial Number : 30:AE:A4:23:35:64
2020-09-10 22:27:24,543 [bleico] [MainThread] [INFO]     - Firmware Revision : micropython-1.13.0
2020-09-10 22:27:24,543 [bleico] [MainThread] [INFO]     - Hardware Revision : esp32
2020-09-10 22:27:24,543 [bleico] [MainThread] [INFO]     - Software Revision : 3.4.0
2020-09-10 22:27:24,552 [bleico] [MainThread] [INFO] Multithreading with maximum 4 threads
2020-09-10 22:27:24,687 [bleico] [MainThread] [INFO] [Battery Service] Battery Level: 96 %
2020-09-10 22:27:24,687 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature: 25.03 °C
2020-09-10 22:27:24,688 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature Range Minimum Temperature: 15.0 °C
2020-09-10 22:27:24,688 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature Range Maximum Temperature: 28.0 °C
2020-09-10 22:27:25,782 [bleico] [MainThread] [INFO] [Battery Service] Battery Level: 96 %
2020-09-10 22:27:25,782 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature: 25.03 °C
2020-09-10 22:27:25,782 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature Range Minimum Temperature: 15.0 °C
2020-09-10 22:27:25,782 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature Range Maximum Temperature: 28.0 °C

Installation¶

Command Line Tool¶

Install bleico by running:
$ pip install bleico
Or get latest development version:
$ pip install https://github.com/Carglglz/bleico/tree/develop.zip

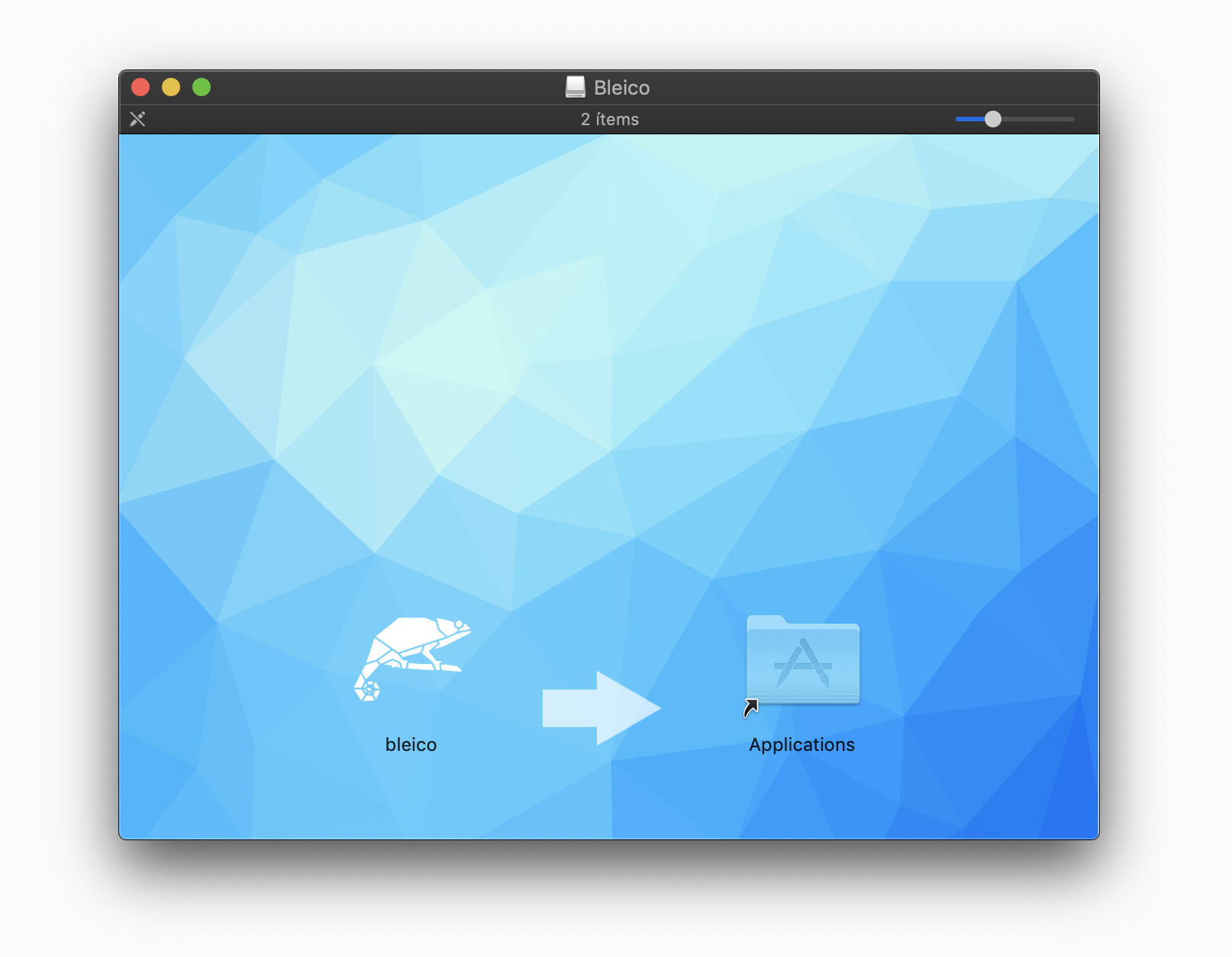

Standalone Application¶

Download from Releases:

MacOS:

bleico_img.dmg

Windows: (Not available yet)

Linux: (Not available yet)

Compatibility¶

Right now [1] bleico is compatible only with devices that exposes GATT services/characteristics defined by Bluetooth SIG Specifications.

Added in bleico v0.0.2:¶

Compatibility with Nordic UART RX, Nordic UART TX characteristics.

It assumes also a simple behaviour where bleico can connect to a device (acting as a peripheral-server) that does not require authentication or an initial writing to a descriptor or control point in order to read/write or subscribe to notifications/indications of any of its characteristics.

[1]	See bleak-sigspec to look into adding a custom/vendor characteristic
