Getting Started¶
Command Line Tool¶
Do $ bleico -h to see mode options and optional args.
$ bleico -h
usage: bleico [Mode] [options]
Bluetooth Low Energy System Tray Utility
positional arguments:
Mode Mode:
- config
- run
optional arguments:
-h, --help show this help message and exit
-v show program's version number and exit
-t T device target uuid
-s show scanner with available devices
-r R read timeout in seconds, default: 1
-dflev DFLEV debug file mode level, options [debug, info, warning, error, critical]
-dslev DSLEV debug sys out mode level, options [debug, info, warning, error, critical]
Config mode¶
To configure a default device to connect to, use -t to indicate the device’s
uuid and -r to indicate the read timeout in seconds (defaults to 1 second)
The device configuration will be saved in bleico_.config under ~/.bleico
directory.
Run mode¶
- Case 1: Configured device
The device is configured already, no any option needed, just do
$ bleico run, to start bleico, a splash will appear while trying to connect to the device, and once it is connected the bleico icon will appear in the system tray / task bar$ bleico run ************************************************************ $$$$$$$\ $$\ $$$$$$$$\ $$$$$$\ $$$$$$\ $$$$$$\ $$ __$$\ $$ | $$ _____|\_$$ _|$$ __$$\ $$ __$$\ $$ | $$ |$$ | $$ | $$ | $$ / \__|$$ / $$ | $$$$$$$\ |$$ | $$$$$\ $$ | $$ | $$ | $$ | $$ __$$\ $$ | $$ __| $$ | $$ | $$ | $$ | $$ | $$ |$$ | $$ | $$ | $$ | $$\ $$ | $$ | $$$$$$$ |$$$$$$$$\ $$$$$$$$\ $$$$$$\ \$$$$$$ | $$$$$$ | \_______/ \________|\________|\______| \______/ \______/ ************************************************************ 2020-09-10 22:27:20,153 [bleico] [MainThread] [INFO] Running bleico 0.0.1 2020-09-10 22:27:23,544 [bleico] [MainThread] [INFO] Connected to: 9998175F-9A91-4CA2-B5EA-482AFC3453B9 2020-09-10 22:27:24,540 [bleico] [MainThread] [INFO] Device esp32-batt-temp found 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] Services: 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] (S) Device Information 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] (C) - Appearance 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] (C) - Manufacturer Name String 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] (C) - Model Number String 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] (C) - Serial Number String 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] (C) - Firmware Revision String 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] (C) - Hardware Revision String 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] (C) - Software Revision String 2020-09-10 22:27:24,541 [bleico] [MainThread] [INFO] (S) Battery Service 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] (C) - Battery Level 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] (C) - Battery Power State 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] (S) Environmental Sensing 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] (C) - Temperature 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] (C) - Temperature Range 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] Device: esp32-batt-temp, UUID: 9998175F-9A91-4CA2-B5EA-482AFC3453B9 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] Device Information: 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] - Appearance: Generic Thermometer 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] - Manufacturer Name : Espressif Incorporated 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] - Model Number : ESP32 module with ESP32 2020-09-10 22:27:24,542 [bleico] [MainThread] [INFO] - Serial Number : 30:AE:A4:23:35:64 2020-09-10 22:27:24,543 [bleico] [MainThread] [INFO] - Firmware Revision : micropython-1.13.0 2020-09-10 22:27:24,543 [bleico] [MainThread] [INFO] - Hardware Revision : esp32 2020-09-10 22:27:24,543 [bleico] [MainThread] [INFO] - Software Revision : 3.4.0 2020-09-10 22:27:24,552 [bleico] [MainThread] [INFO] Multithreading with maximum 4 threads 2020-09-10 22:27:24,687 [bleico] [MainThread] [INFO] [Battery Service] Battery Level: 96 % 2020-09-10 22:27:24,687 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature: 25.03 °C 2020-09-10 22:27:24,688 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature Range Minimum Temperature: 15.0 °C 2020-09-10 22:27:24,688 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature Range Maximum Temperature: 28.0 °C
- Case 2: No configured device, known uuid
To connect to a different device with a known uuid, do
$ bleico run -t [uuid]e.g.$ bleico run -t F6291A68-6086-4538-A2C7-A7ABE485305C ************************************************************ $$$$$$$\ $$\ $$$$$$$$\ $$$$$$\ $$$$$$\ $$$$$$\ $$ __$$\ $$ | $$ _____|\_$$ _|$$ __$$\ $$ __$$\ $$ | $$ |$$ | $$ | $$ | $$ / \__|$$ / $$ | $$$$$$$\ |$$ | $$$$$\ $$ | $$ | $$ | $$ | $$ __$$\ $$ | $$ __| $$ | $$ | $$ | $$ | $$ | $$ |$$ | $$ | $$ | $$ | $$\ $$ | $$ | $$$$$$$ |$$$$$$$$\ $$$$$$$$\ $$$$$$\ \$$$$$$ | $$$$$$ | \_______/ \________|\________|\______| \______/ \______/ ************************************************************ 2020-09-13 21:33:48,783 [bleico] [MainThread] [INFO] Running bleico 0.0.1 2020-09-13 21:33:52,640 [bleico] [MainThread] [ERROR] Device with address F6291A68-6086-4538-A2C7-A7ABE485305C was not found 2020-09-13 21:33:52,641 [bleico] [MainThread] [INFO] Trying again... 2020-09-13 21:34:00,612 [bleico] [MainThread] [INFO] Connected to: F6291A68-6086-4538-A2C7-A7ABE485305C 2020-09-13 21:34:02,310 [bleico] [MainThread] [INFO] Device LG6 found 2020-09-13 21:34:02,310 [bleico] [MainThread] [INFO] Services: 2020-09-13 21:34:02,310 [bleico] [MainThread] [INFO] (S) Battery Service 2020-09-13 21:34:02,310 [bleico] [MainThread] [INFO] (C) - Battery Level 2020-09-13 21:34:02,310 [bleico] [MainThread] [INFO] (C) - Battery Power State 2020-09-13 21:34:02,310 [bleico] [MainThread] [INFO] (S) Device Information 2020-09-13 21:34:02,311 [bleico] [MainThread] [INFO] (C) - Manufacturer Name String 2020-09-13 21:34:02,311 [bleico] [MainThread] [INFO] (C) - Appearance 2020-09-13 21:34:02,311 [bleico] [MainThread] [INFO] (C) - Model Number String 2020-09-13 21:34:02,311 [bleico] [MainThread] [INFO] (C) - Firmware Revision String 2020-09-13 21:34:02,311 [bleico] [MainThread] [INFO] (S) Environmental Sensing 2020-09-13 21:34:02,311 [bleico] [MainThread] [INFO] (C) - Temperature 2020-09-13 21:34:02,311 [bleico] [MainThread] [INFO] (C) - Sensor Location 2020-09-13 21:34:02,311 [bleico] [MainThread] [INFO] (S) Tx Power 2020-09-13 21:34:02,312 [bleico] [MainThread] [INFO] (C) - Tx Power Level 2020-09-13 21:34:02,312 [bleico] [MainThread] [INFO] Device: LG6, UUID: F6291A68-6086-4538-A2C7-A7ABE485305C 2020-09-13 21:34:02,312 [bleico] [MainThread] [INFO] Device Information: 2020-09-13 21:34:02,312 [bleico] [MainThread] [INFO] - Manufacturer Name : LG Electronics 2020-09-13 21:34:02,312 [bleico] [MainThread] [INFO] - Appearance: Fingertip 2020-09-13 21:34:02,312 [bleico] [MainThread] [INFO] - Model Number : LG-H870 2020-09-13 21:34:02,312 [bleico] [MainThread] [INFO] - Firmware Revision : Android 9 2020-09-13 21:34:02,324 [bleico] [MainThread] [INFO] Multithreading with maximum 4 threads 2020-09-13 21:34:02,848 [bleico] [MainThread] [INFO] [Battery Service] Battery Level: 96 % 2020-09-13 21:34:02,848 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature: 25.0 °C 2020-09-13 21:34:02,849 [bleico] [MainThread] [INFO] [Environmental Sensing] Sensor Location: Other 2020-09-13 21:34:02,849 [bleico] [MainThread] [INFO] [Tx Power] Tx Power Level: 0 dBm
- Case 3: No configured device and unknown uuid
To connect to a device with unknown uuid do

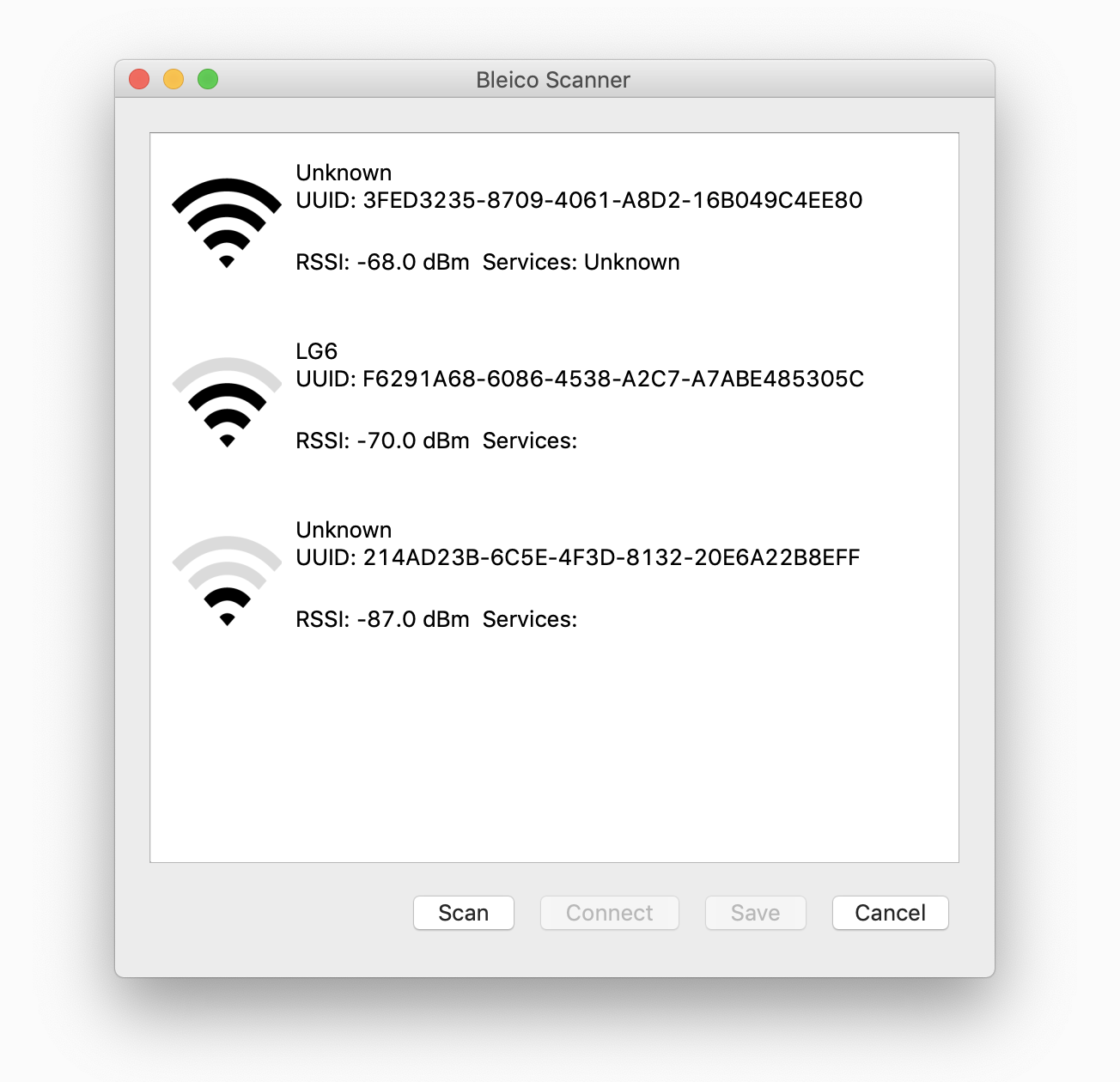

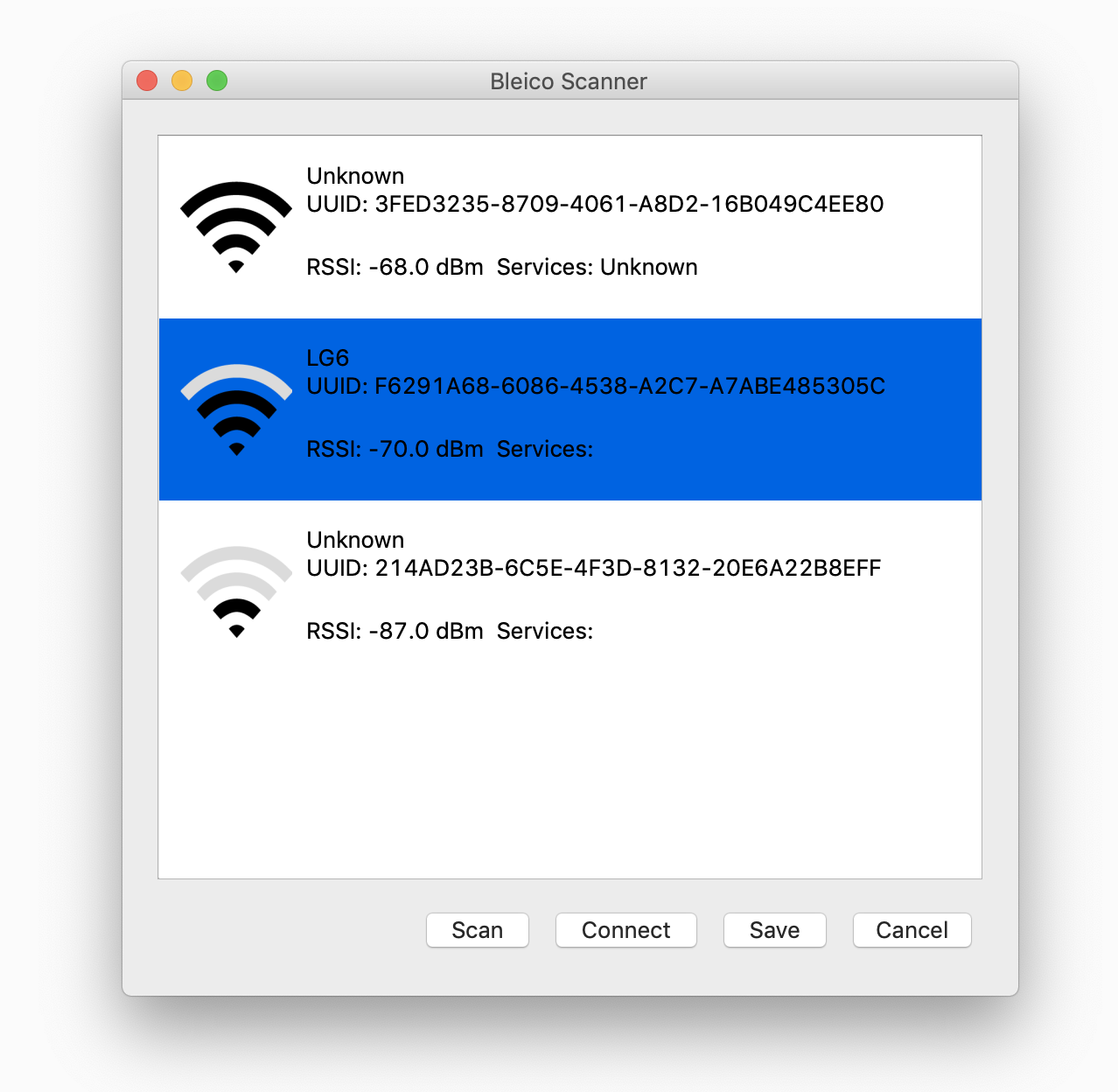

$ bleico run -sThis will perform a scan and show available devices in a dialog box, where the device can be selected and save it as a default. e.g.
$ bleico run -s ************************************************************ $$$$$$$\ $$\ $$$$$$$$\ $$$$$$\ $$$$$$\ $$$$$$\ $$ __$$\ $$ | $$ _____|\_$$ _|$$ __$$\ $$ __$$\ $$ | $$ |$$ | $$ | $$ | $$ / \__|$$ / $$ | $$$$$$$\ |$$ | $$$$$\ $$ | $$ | $$ | $$ | $$ __$$\ $$ | $$ __| $$ | $$ | $$ | $$ | $$ | $$ |$$ | $$ | $$ | $$ | $$\ $$ | $$ | $$$$$$$ |$$$$$$$$\ $$$$$$$$\ $$$$$$\ \$$$$$$ | $$$$$$ | \_______/ \________|\________|\______| \______/ \______/ ************************************************************ 2020-09-13 21:40:58,393 [bleico] [MainThread] [INFO] Running bleico 0.0.1 2020-09-13 21:40:58,586 [bleico] [MainThread] [INFO] SCANNING AVAILABLE DEVICES... 2020-09-13 21:40:58,987 [bleico] [MainThread] [INFO] Scanning... 2020-09-13 21:41:03,992 [bleico] [MainThread] [INFO] BLE device/s found: 2 2020-09-13 21:41:03,992 [bleico] [MainThread] [INFO] NAME: LG6, UUID: F6291A68-6086-4538-A2C7-A7ABE485305C, RSSI: -46.0 dBm 2020-09-13 21:41:03,992 [bleico] [MainThread] [INFO] NAME: Unknown, UUID: 214AD23B-6C5E-4F3D-8132-20E6A22B8EFF, RSSI: -85.0 dBm 2020-09-13 21:41:06,610 [bleico] [MainThread] [INFO] Device selected: F6291A68-6086-4538-A2C7-A7ABE485305C 2020-09-13 21:41:25,860 [bleico] [MainThread] [INFO] Connecting to: F6291A68-6086-4538-A2C7-A7ABE485305C 2020-09-13 21:41:29,185 [bleico] [MainThread] [ERROR] Device with address F6291A68-6086-4538-A2C7-A7ABE485305C was not found 2020-09-13 21:41:29,186 [bleico] [MainThread] [INFO] Trying again... 2020-09-13 21:41:33,192 [bleico] [MainThread] [ERROR] Device with address F6291A68-6086-4538-A2C7-A7ABE485305C was not found 2020-09-13 21:41:33,192 [bleico] [MainThread] [INFO] Trying again... 2020-09-13 21:41:37,196 [bleico] [MainThread] [ERROR] Device with address F6291A68-6086-4538-A2C7-A7ABE485305C was not found 2020-09-13 21:41:37,196 [bleico] [MainThread] [INFO] Trying again... 2020-09-13 21:41:45,534 [bleico] [MainThread] [INFO] Connected to: F6291A68-6086-4538-A2C7-A7ABE485305C 2020-09-13 21:41:47,280 [bleico] [MainThread] [INFO] Device LG6 found 2020-09-13 21:41:47,280 [bleico] [MainThread] [INFO] Services: 2020-09-13 21:41:47,280 [bleico] [MainThread] [INFO] (S) Battery Service 2020-09-13 21:41:47,280 [bleico] [MainThread] [INFO] (C) - Battery Level 2020-09-13 21:41:47,280 [bleico] [MainThread] [INFO] (C) - Battery Power State 2020-09-13 21:41:47,281 [bleico] [MainThread] [INFO] (S) Device Information 2020-09-13 21:41:47,281 [bleico] [MainThread] [INFO] (C) - Manufacturer Name String 2020-09-13 21:41:47,281 [bleico] [MainThread] [INFO] (C) - Appearance 2020-09-13 21:41:47,281 [bleico] [MainThread] [INFO] (C) - Model Number String 2020-09-13 21:41:47,281 [bleico] [MainThread] [INFO] (C) - Firmware Revision String 2020-09-13 21:41:47,281 [bleico] [MainThread] [INFO] (S) Environmental Sensing 2020-09-13 21:41:47,281 [bleico] [MainThread] [INFO] (C) - Temperature 2020-09-13 21:41:47,281 [bleico] [MainThread] [INFO] (C) - Sensor Location 2020-09-13 21:41:47,281 [bleico] [MainThread] [INFO] (S) Tx Power 2020-09-13 21:41:47,282 [bleico] [MainThread] [INFO] (C) - Tx Power Level 2020-09-13 21:41:47,282 [bleico] [MainThread] [INFO] Device: LG6, UUID: F6291A68-6086-4538-A2C7-A7ABE485305C 2020-09-13 21:41:47,282 [bleico] [MainThread] [INFO] Device Information: 2020-09-13 21:41:47,282 [bleico] [MainThread] [INFO] - Manufacturer Name : LG Electronics 2020-09-13 21:41:47,282 [bleico] [MainThread] [INFO] - Appearance: Fingertip 2020-09-13 21:41:47,282 [bleico] [MainThread] [INFO] - Model Number : LG-H870 2020-09-13 21:41:47,283 [bleico] [MainThread] [INFO] - Firmware Revision : Android 9 2020-09-13 21:41:47,289 [bleico] [MainThread] [INFO] Multithreading with maximum 4 threads 2020-09-13 21:41:47,915 [bleico] [MainThread] [INFO] [Battery Service] Battery Level: 96 % 2020-09-13 21:41:47,915 [bleico] [MainThread] [INFO] [Environmental Sensing] Temperature: 25.0 °C 2020-09-13 21:41:47,916 [bleico] [MainThread] [INFO] [Environmental Sensing] Sensor Location: Other 2020-09-13 21:41:47,916 [bleico] [MainThread] [INFO] [Tx Power] Tx Power Level: 0 dBm
Standalone Application¶
If there is no configured device, the scan dialog will appear. If there is a configured device, it will try to connect to it, and if this is not possible, the scan dialog will appear again.
